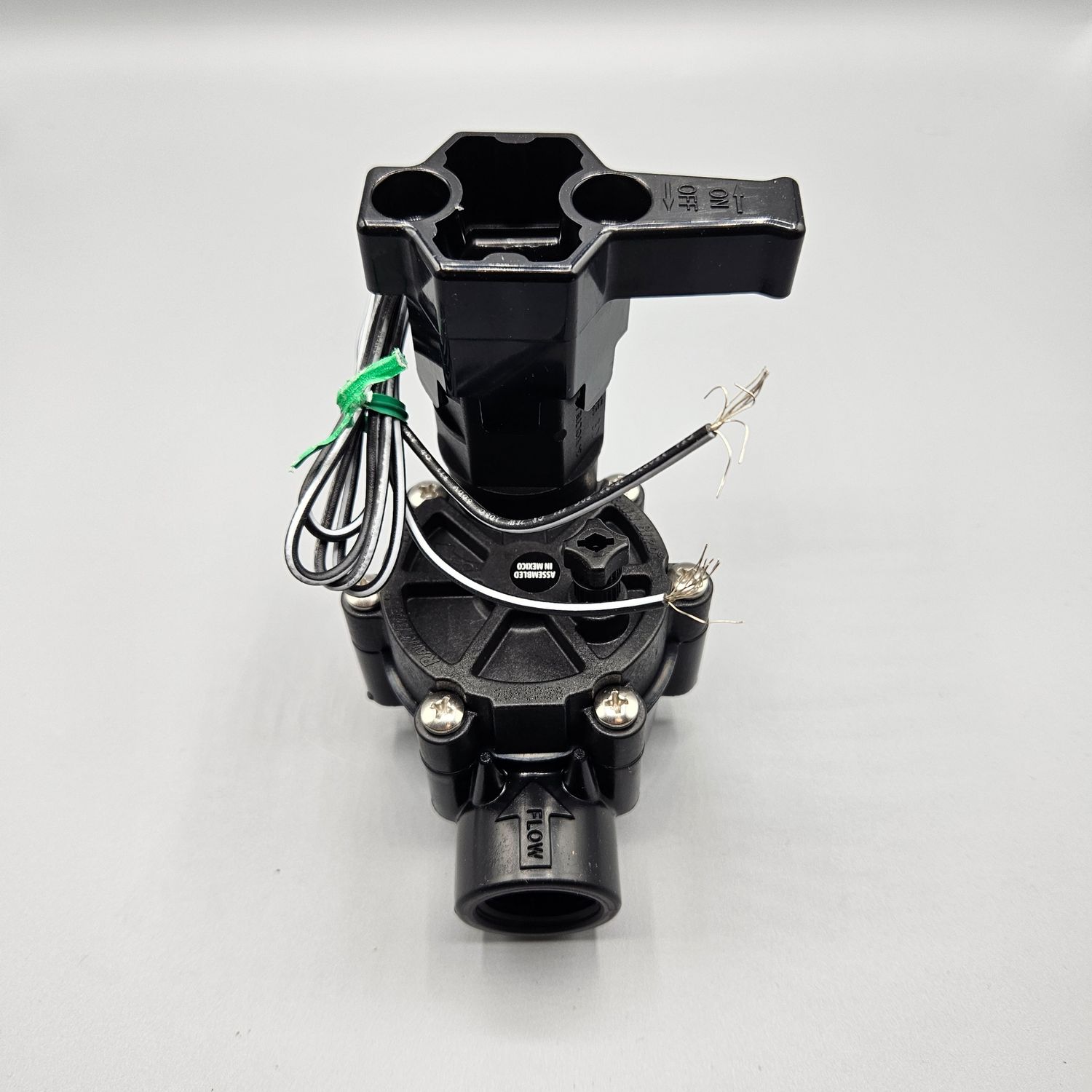

Rain Bird 75DV 3/4" Inline Plastic Residential Irrigation Valve

The Rain Bird 75DV is a 3/4-inch BSP inline plastic irrigation valve designed for residential and light commercial applications. Known for its reliability and performance, this valve ensures efficient water management for your irrigation system.

Key Features:

• Double-Filtered Pilot-Flow Design: Enhances reliability by preventing debris from entering the valve mechanism.
• Balanced Pressure Diaphragm: Ensures consistent performance and extends the valve's lifespan.
• External Bleed: Allows for manual flushing of the system to remove dirt and debris during installation and start-up.
• Energy-Efficient Solenoid: Equipped with a low-power encapsulated solenoid featuring a captured plunger and 90-mesh (200 micron) solenoid filter.
• Buna-N Diaphragm: Features a self-cleaning 90-mesh (200 micron) pilot water filter and captive spring for enhanced durability.
• Low-Flow Operation: Capable of operating in low-flow and Xerigation® applications when a 200-mesh filter is installed upstream.
• Compatibility: Accepts latching solenoids for use with Rain Bird battery-operated controllers.

Specifications:

• Flow Range: 0.2 to 22 GPM (0.05 to 5.0 m³/h; 0.01 to 1.39 l/s). For flows below 3 GPM (0.75 m³/h; 0.21 l/s) or any Xerigation® application, a 200-mesh filter should be installed upstream.
• Pressure Range: 15 to 150 psi (1.0 to 10.4 bar).
• Temperature: Water up to 110°F (43°C); ambient air up to 125°F (52°C).
• Solenoid Specifications: 24 VAC 50/60 Hz with an inrush current of 0.30 A (7.2 VA) and holding current of 0.23 A (5.5 VA). Solenoid coil resistance is 38 Ohms.
• Dimensions: Height: 4.5 inches (11.4 cm); Length: 4.375 inches (11.1 cm); Width: 3.33 inches (8.4 cm).

The Rain Bird 75DV valve is a dependable choice for maintaining a lush and healthy landscape through efficient irrigation control.
