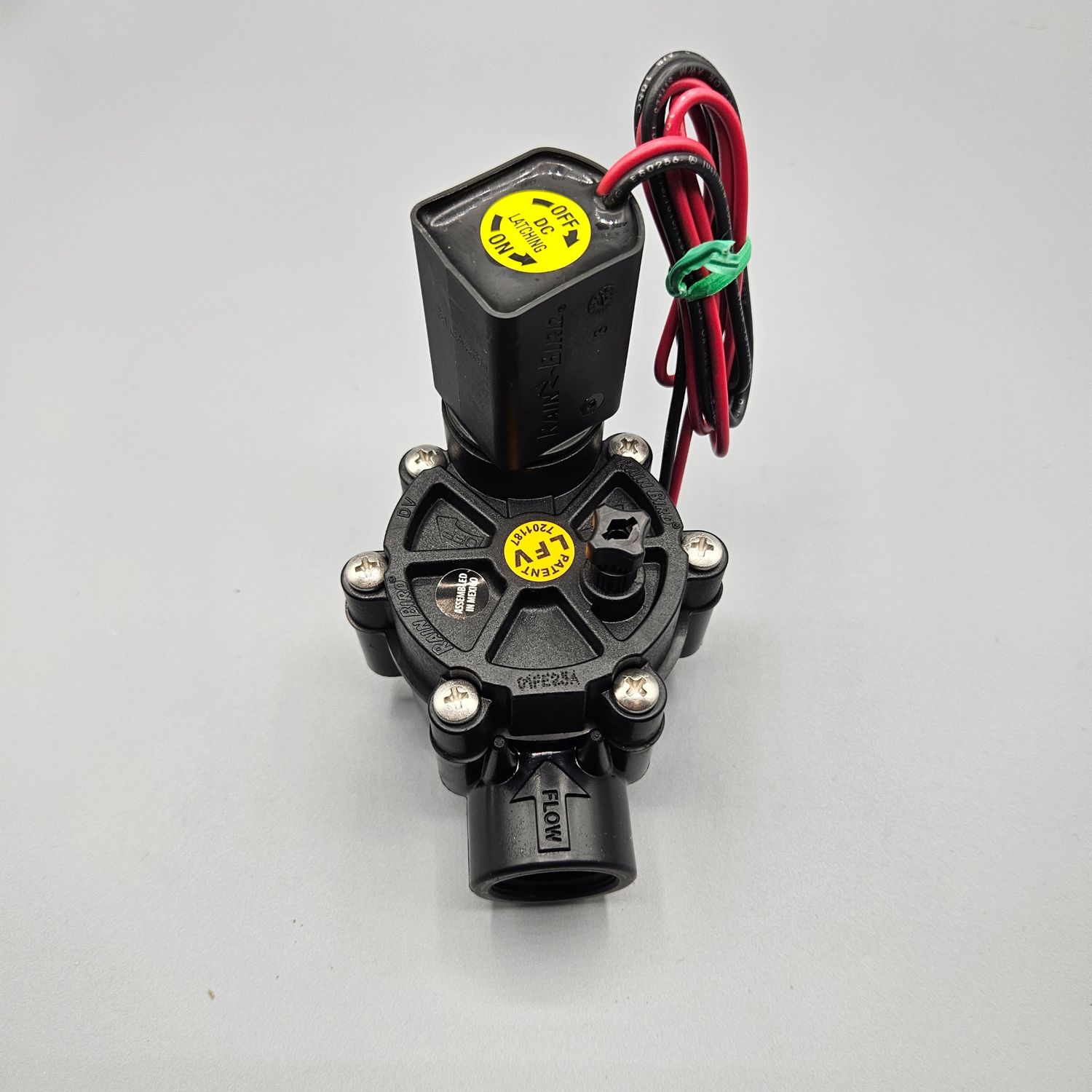

Rain Bird 75 DV 9V Low Flow Valve – Efficient Battery-Operated Irrigation

The Rain Bird 75 DV 9V Low Flow Valve is a 3/4-inch inline plastic valve designed for low-flow irrigation systems, such as drip irrigation and green walls. Equipped with a 9-volt latching solenoid, it is ideal for use with battery-operated controllers, providing reliable performance in areas without AC power.

Key Features:

• Low-Flow Operation – Handles flow rates from 0.2 to 8.0 GPM (0.6 to 30.0 l/m), perfect for drip irrigation systems.
• 9V Latching Solenoid – Works with battery-powered controllers for flexible installation.
• Double-Filtered Pilot Flow Design – Prevents debris from entering the valve for reliable operation.
• Unique Diaphragm Design – Allows particles to pass through at low flow rates, preventing valve weeping.
• Manual Operation – Includes internal and external bleed options for easy manual operation and system flushing.

Specifications:

• Flow Range: 0.2 to 8.0 GPM (0.6 to 30.0 l/m).
• Pressure Range: 15 to 150 psi (1.0 to 10.3 bar).
• Temperature: Water up to 110°F (43°C); ambient air up to 125°F (52°C).
• Solenoid: 9V DC latching solenoid for battery-powered controllers.
• Dimensions: Height: 4.5 in (11.4 cm); Length: 4.375 in (11.1 cm); Width: 3.33 in (8.4 cm).

The Rain Bird 75 DV 9V Low Flow Valve is a dependable solution for low-flow irrigation, ensuring efficient water management where traditional power sources are unavailable.
