Rain Bird ESP-LXIVM & IC Surge Protection Solutions
To ensure the longevity and reliability of your Rain Bird ESP-LXIVM and Integrated Control (IC) irrigation systems, implementing appropriate surge protection is essential. Rain Bird offers specialized surge protection devices designed to safeguard these systems from electrical surges and lightning strikes.
ESP-LXIVM Surge Protection:

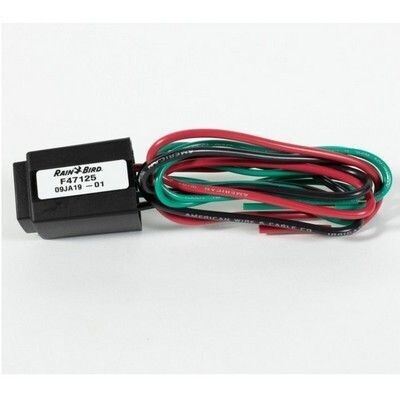

IVM-SD (Integrated Valve Module Surge Device):
This device provides surge protection along the two-wire path of the ESP-LXIVM controller. Installation is recommended every 500 feet or every 15 field devices, whichever is less, to effectively divert high-energy surges to the ground. Proper grounding of each IVM-SD is crucial for optimal performance.
Integrated Control (IC) System Surge Protection:
ICSD (Integrated Control Surge Device):
Designed specifically for Rain Bird's IC systems, the ICSD supplements the built-in surge protection of each Integrated Control Module (ICM). Strategically installing ICSDs throughout the system helps absorb and safely redirect electrical surges, enhancing overall system resilience.
Incorporating these surge protection devices into your irrigation infrastructure is vital for preventing damage from electrical surges, thereby ensuring continuous and efficient operation of your Rain Bird irrigation systems.
*This must be connected to a copper earthing rod or earthing plate.
