Rain Bird Triple Swing Joint 1¼" BSP to 1¼" ACME with Extra Inlet Elbow

The Rain Bird Triple Swing Joint is engineered to provide flexible and reliable connections between irrigation pipelines and sprinklers, particularly suited for golf course applications. This model features a 1¼" BSP inlet, a 1¼" ACME outlet, and an additional inlet elbow, facilitating versatile installation options.

Key Features:

• Enhanced Flexibility: The triple-top outlet design allows for precise sprinkler positioning, accommodating adjustments due to turf height variations or settling, ensuring optimal water distribution.
• Durable Construction: Constructed from high-quality materials, the swing joint offers robust performance under varying environmental conditions, ensuring longevity and reliability.
• Efficient Flow Design: Incorporates a swept elbow design that reduces pressure loss by up to 50% compared to standard swing joints, promoting efficient water flow and system performance.
• Double O-Ring Seals: Equipped with double O-ring protection to provide a secure seal, preventing leaks and allowing for easy repositioning of components as needed.

Specifications:

• Inlet Size: 1¼" BSP (British Standard Pipe)
• Outlet Size: 1¼" ACME thread
• Length Options: Available in 12-inch configurations to suit various installation requirements.
• Pressure Rating: Designed to withstand operating pressures up to 21.7 bar, suitable for high-demand irrigation systems.

The inclusion of an extra inlet elbow provides additional flexibility during installation, enabling more straightforward connections to lateral pipelines and accommodating complex site layouts. This feature simplifies the installation process and enhances the adaptability of the irrigation system.

Incorporating the Rain Bird Triple Swing Joint with an extra inlet elbow into your irrigation setup ensures a durable, efficient, and adaptable connection solution, essential for maintaining optimal performance in professional-grade watering systems.

Also known as: Swing Arm, Riser, Swing Joint, Sprinkler Riser, Triple action swing joint

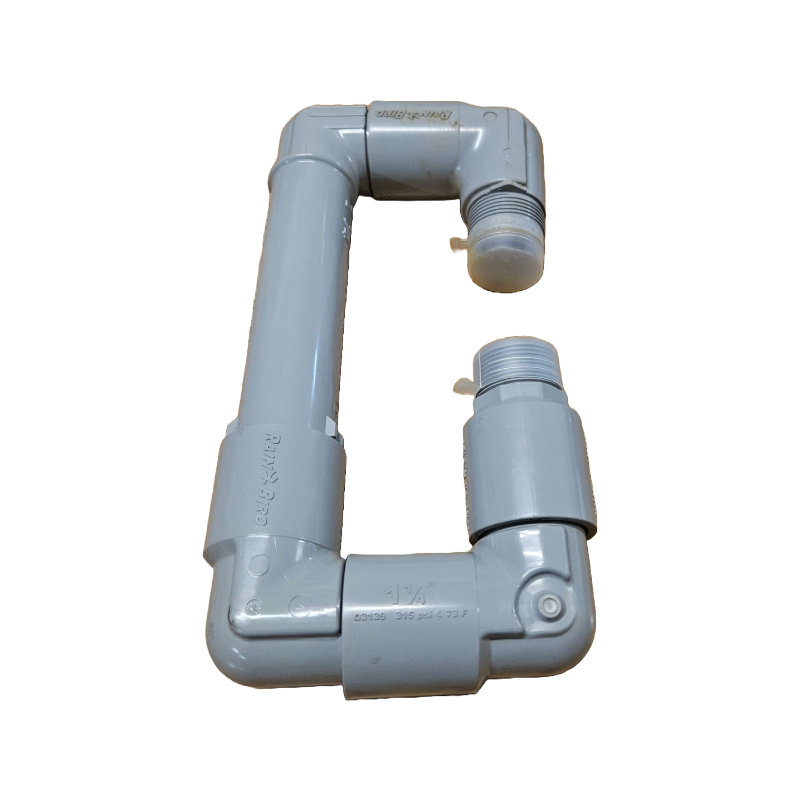

*Elbows as shown in the pictures.

** Note the colours of some of the poly parts have changed over covid times

***When ordering swing joints you need to know what thread type is required to match your sprinklers

BSP= A thread on its own and requires a sealing of tape or thread
ACME= A thread with a O Ring, the O Ring makes the seal
